Wilwood AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit – Nickel Plate Caliper – Plain Face Rotor

$7,945.00

AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit

AERO6 WCCB Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO6 WCCB kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. W6AR calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant “Quick-Silver“ Nickel plate is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.

SKU: 136058
Category:

Description

Kit Summary

Spindle Type:
Factory Disc Spindle;
Mount Type: Radial
Caliper Type: 6 – Nickel Plate
Rotor Diameter: 14
Min Wheel Diameter Req’d*: 18

Fitment & Installation Details

Kit Components & Specifications

Calipers: Info / Part Number:
Left Hand – Part No: 120-13290-N
Right Hand – Part No: 120-13289-N
Type: AERO6
Finish Color: Nickel Plate
Piston Count: 6
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6617
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 5.2
Pad Compound: PCM
AERO6 Caliper - Nickel Plate
Rotors: Info / Part Number:
Left Hand – Part No: 160-12442
Right Hand – Part No: 160-12442
Type: WCCD Carbon-Ceramic
Style: Plain Face
Surface Finish: Plain
Material: C/SiC
Outside Diameter (in): 14
Width (in): 1.25
Vane Count: 24 V
Design Type: C/SiC
Bedded: No
Dynamically Balanced: No
WCCD Carbon-Ceramic - C/SiC - Plain
Rotor Hats: Info / Part Number:
Hat – Part No: 170-12624
Type: Big Brake Dynamic Bobbin Mount Hat – Short Offset
Material: Aluminum
Finish Color: Type III Anodize
Hat Offset Dimension (in): 0.658
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Bolt Circle 3:
Stud Diameter – BC 1: 0.52
Stud Diameter – BC 2: 0.52
Stud Diameter – BC 3: 0

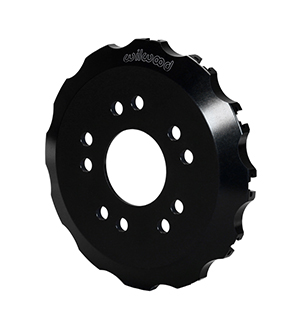

Big Brake Dynamic Bobbin Mount Hat - Short Offset - Aluminum - Type III Anodize
Hubs: Info / Part Number:
Hub – Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter – BC 1:
Stud Diameter – BC 2:
Stud Diameter – BC 3:

Parts & Accessories

Calipers: Info / Part Number:
O-ring Kit: 130-5972
Replacement Dustboot: N-A
Replacement Piston 1: 200-7519
Replacement Piston 2: 200-7513
Replacement Piston 3: 200-7513
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate – Left Hand: 300-5876
Wear Plate – Right Hand: 300-5876
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Line Kits: Info / Part Number:
2005 Ford Mustang
220-9111
Hat: Info / Part Number:
Bolt Kit: Call
Hubs: Info / Part Number:
Bolt Kit:



Additional information

Weight 54 lbs
Dimensions 13.9 × 13.9 × 16.6 in
Brand

Model

, ,

Model Year

, , , , , , ,
